Thermomass Insulation System Implemented
The client chose the Thermomass System over insulated concrete forms (ICFs). This “sandwich wall” insulation system is integrated into the concrete forms’ setup process and capitalizes on concrete’s greatest asset, its thermal mass effect, to create a building envelope that controls heat capture. Thermomass insulation connects two wythes, or layers of concrete, to transfer loads to the structural wythe.

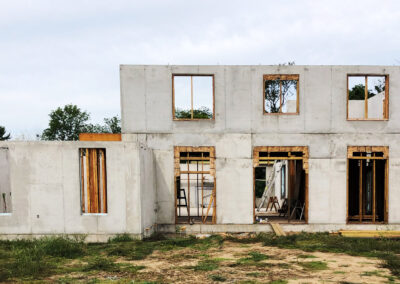

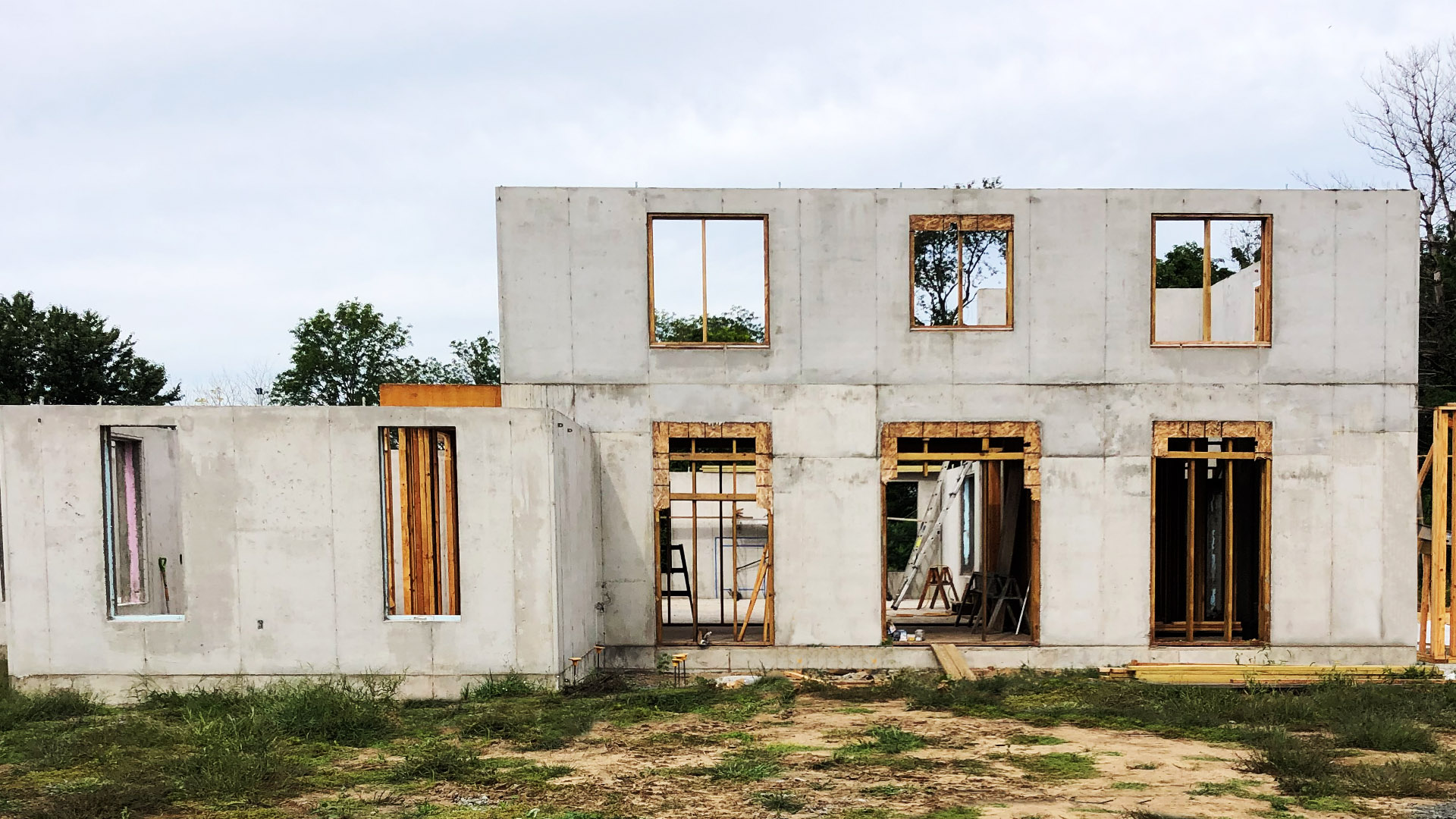

Insulated Concrete Shell Stats
Size of home: 2,900 sq. ft.
Amount of wall: 738 linear ft
Concrete volume: 255 cu. yds.
13,000 lbs. of steel reinforcement
180 lbs. microfiber slab reinforcement
6,000 sq. ft. 4-in. Thermomass insulation in walls
Wall heights: 4, 9, 10, and 11 ft.
Wall thickness: Varied between 8-12 in.
Flat, Smooth Insulated Concrete Walls

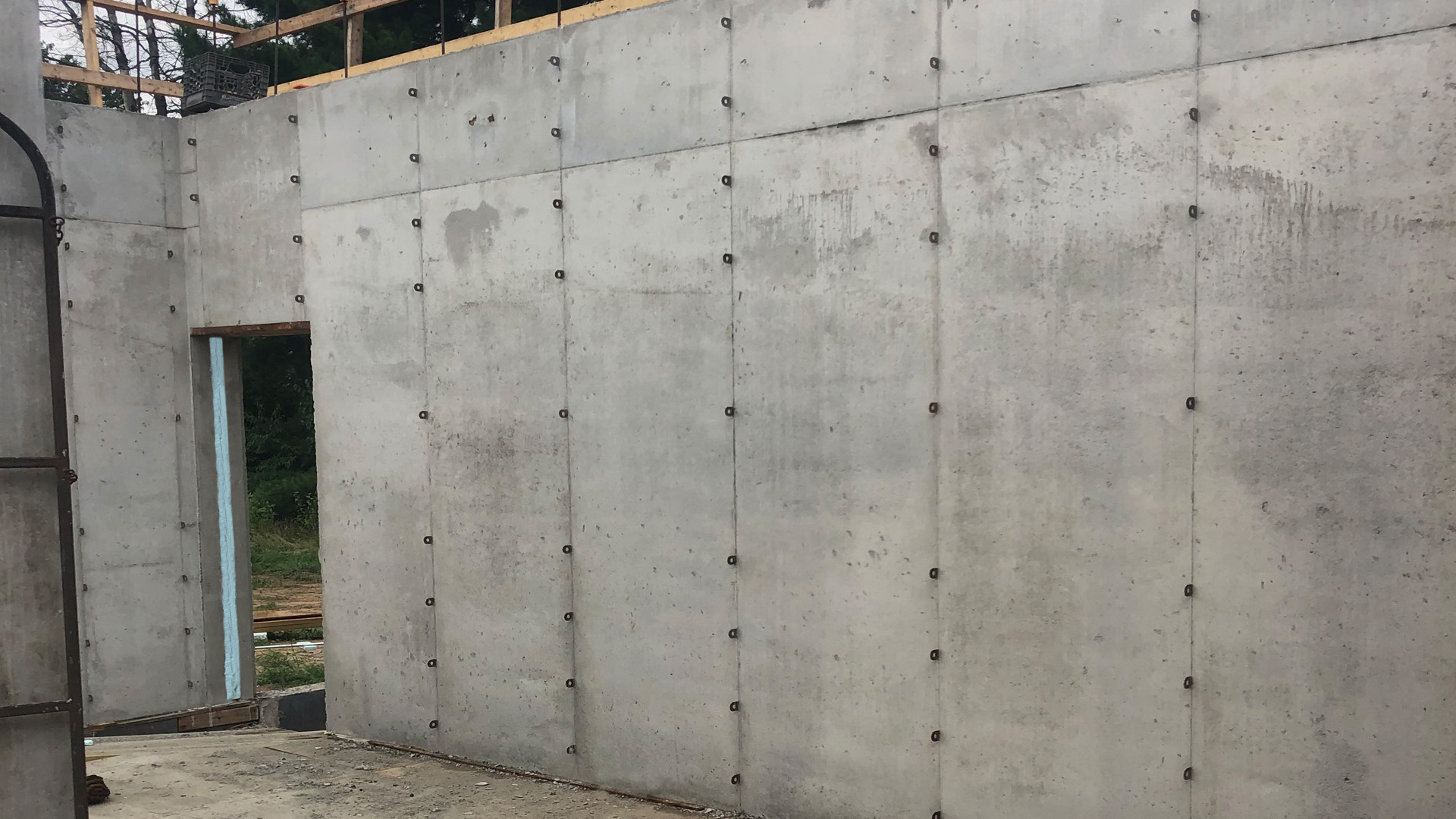

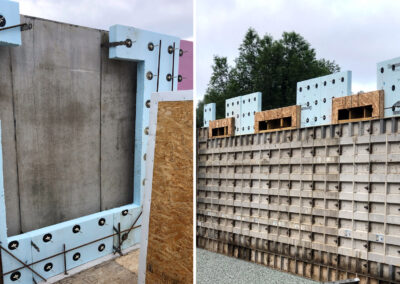

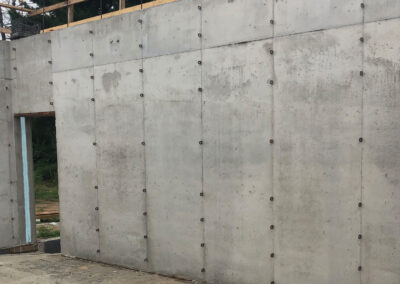

All walls above and below grade include a 4-in. Thermomass CIP Insulation System, which was tied to the steel rebar into the center of the forming concrete forming systems. For this, Western Forms were implemented to ensure walls would be flat and smooth, ready for finish. The concrete used was a self-consolidating concrete to enable an even flow though-out the advanced concrete forming system.
Window and Door Concrete Block-outs

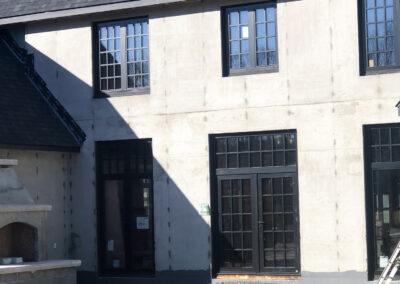

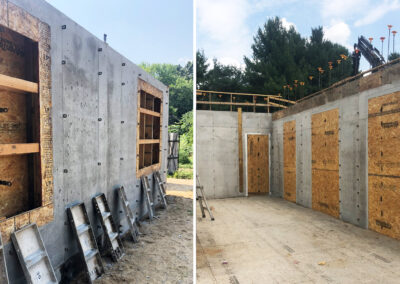

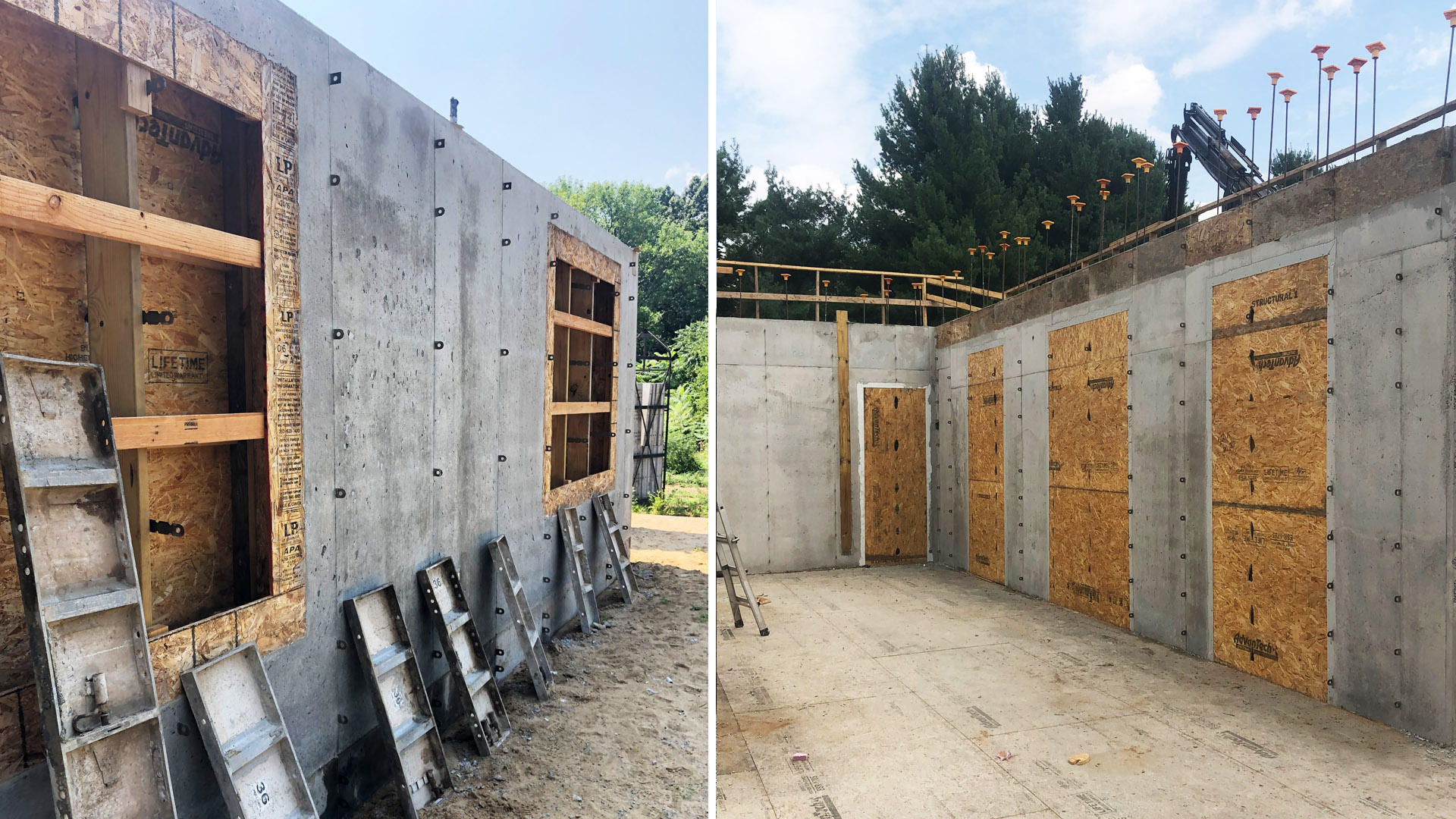

Wood was integrated into the aluminum forming set-up to block out those portions of the insulated concrete walls for window and door placement. Special consideration was paid to ensure that all window and door openings were square and plum. Once these wood block-outs are removed, windows and doors were easily installed into the openings.
Achieving Outstanding Energy Savings
The technical use of concrete for this home was spectacular. After windows and doors were installed, during the interior construction process (before the solar panels were installed),because of the concretes’ thermal mass, and extremely low air infiltration (at 0.05% air changes), the energy bill in June was only $45.00.

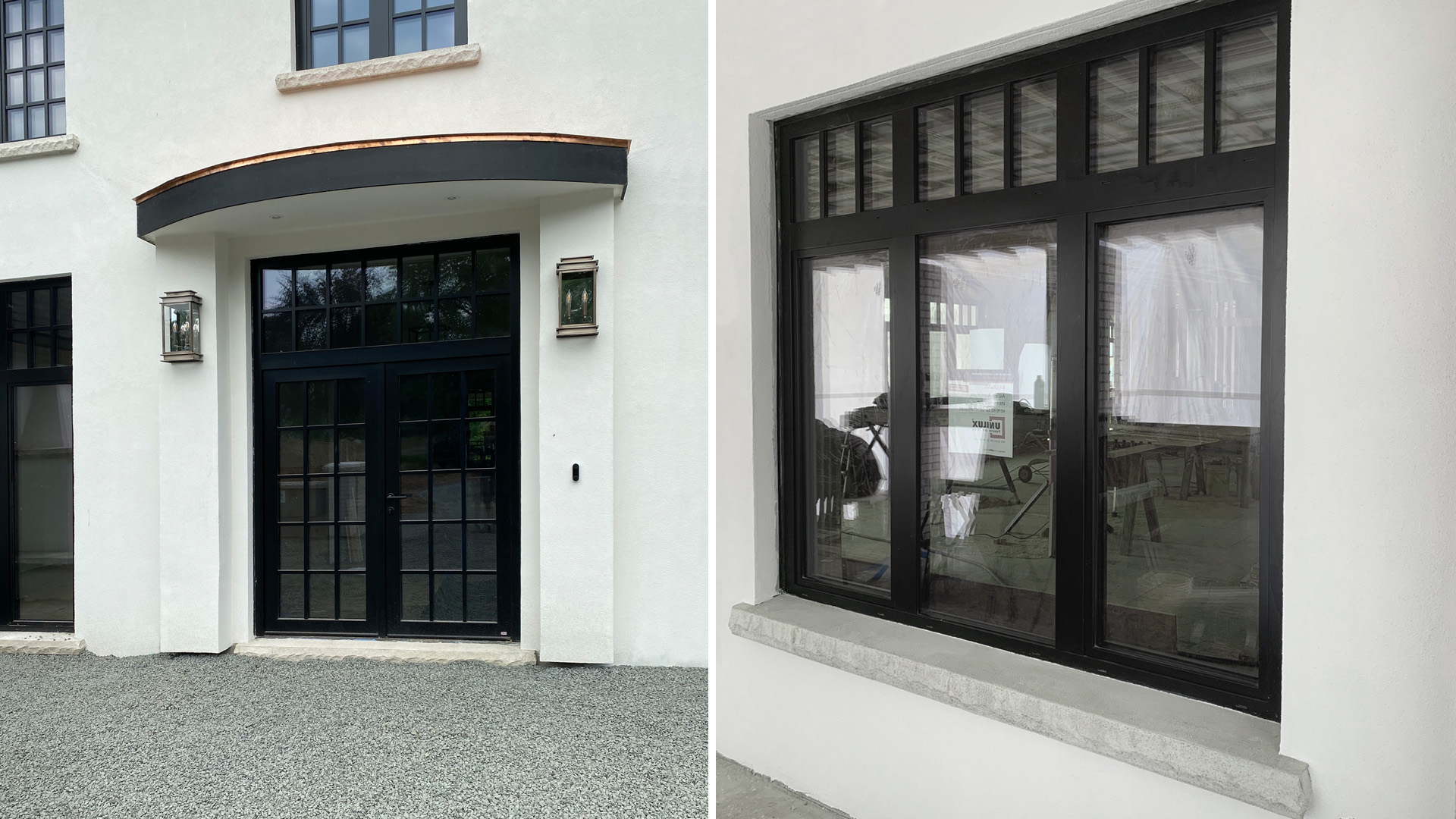

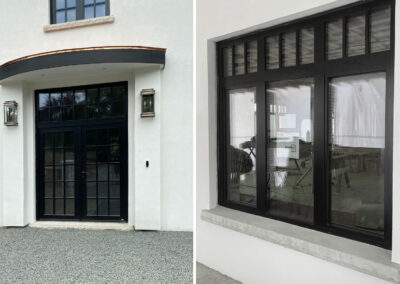

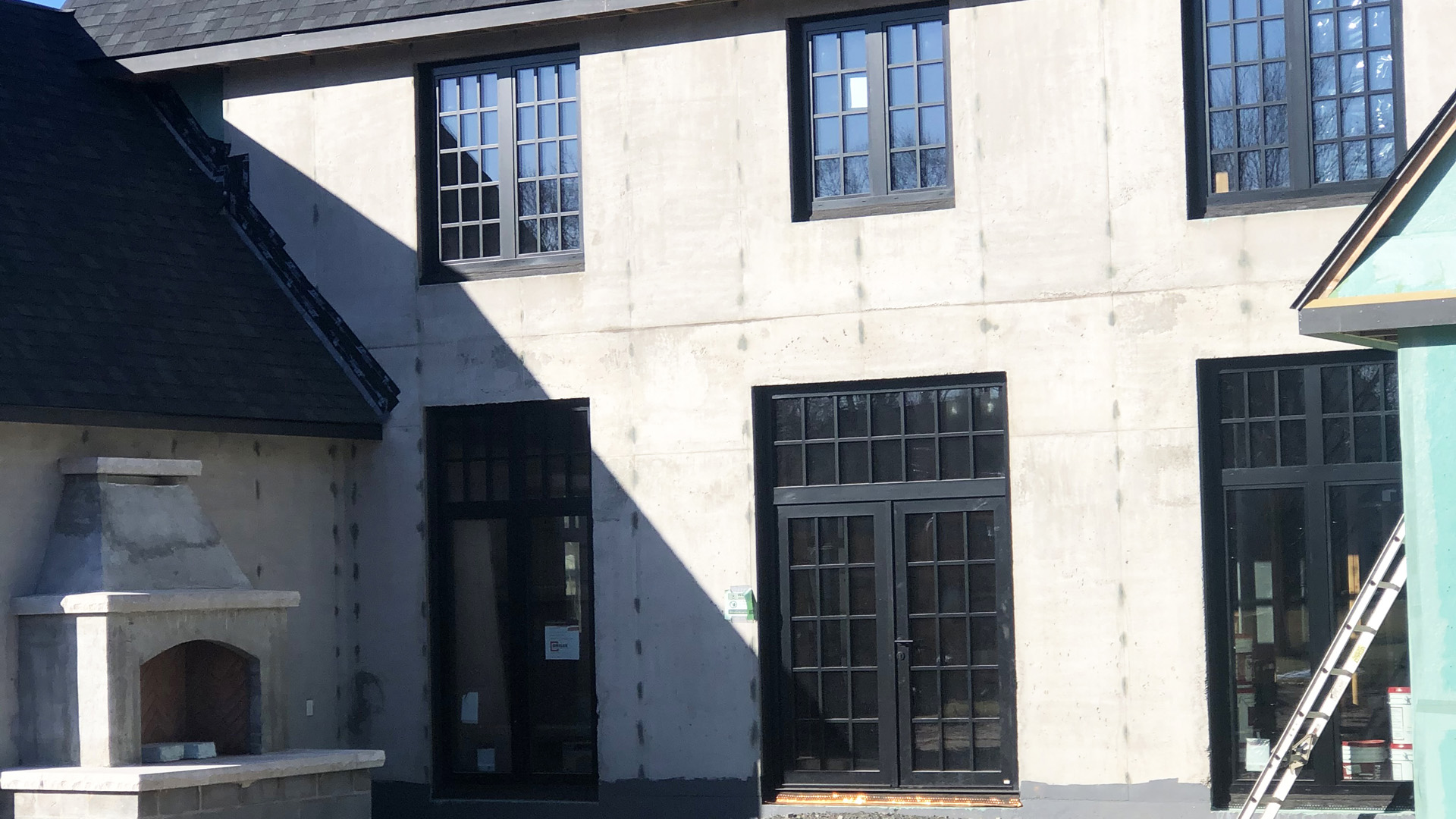

Energy Efficient Windows and Doors
The structure’s Home Energy Rating System (HERS) Index is negative. Most homes have a HERS Index of 0-150; a higher rating denotes lower energy efficiency. According to the U.S. Department of Energy, a typical resale home scores a 130 on the HERS Index, for example. Builder, Dennis Purinton notes that the results from the blower door test were “spectacular.” Conducted on the house to test the building’s air leakage and energy consumption, they exceeded expectations.
Interior Concrete Finishing

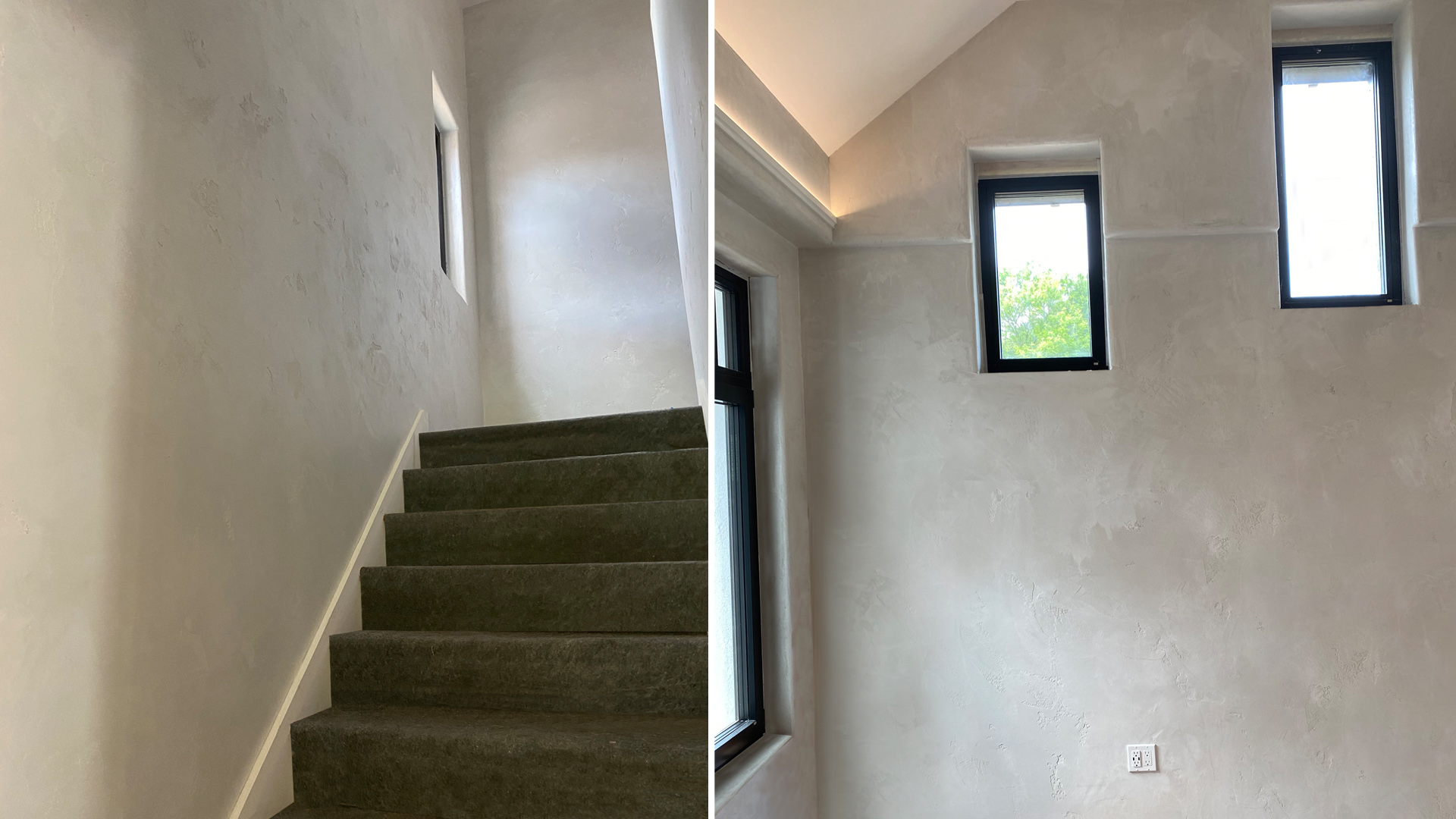

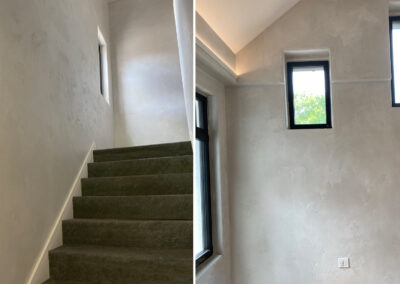

Special consideration to detail in finishing walls provided the new homeowner beautiful interior walls. Applied by experienced trade personnel, the environmentally friendly wall finishes provide a warm, soft, delicate effect.
